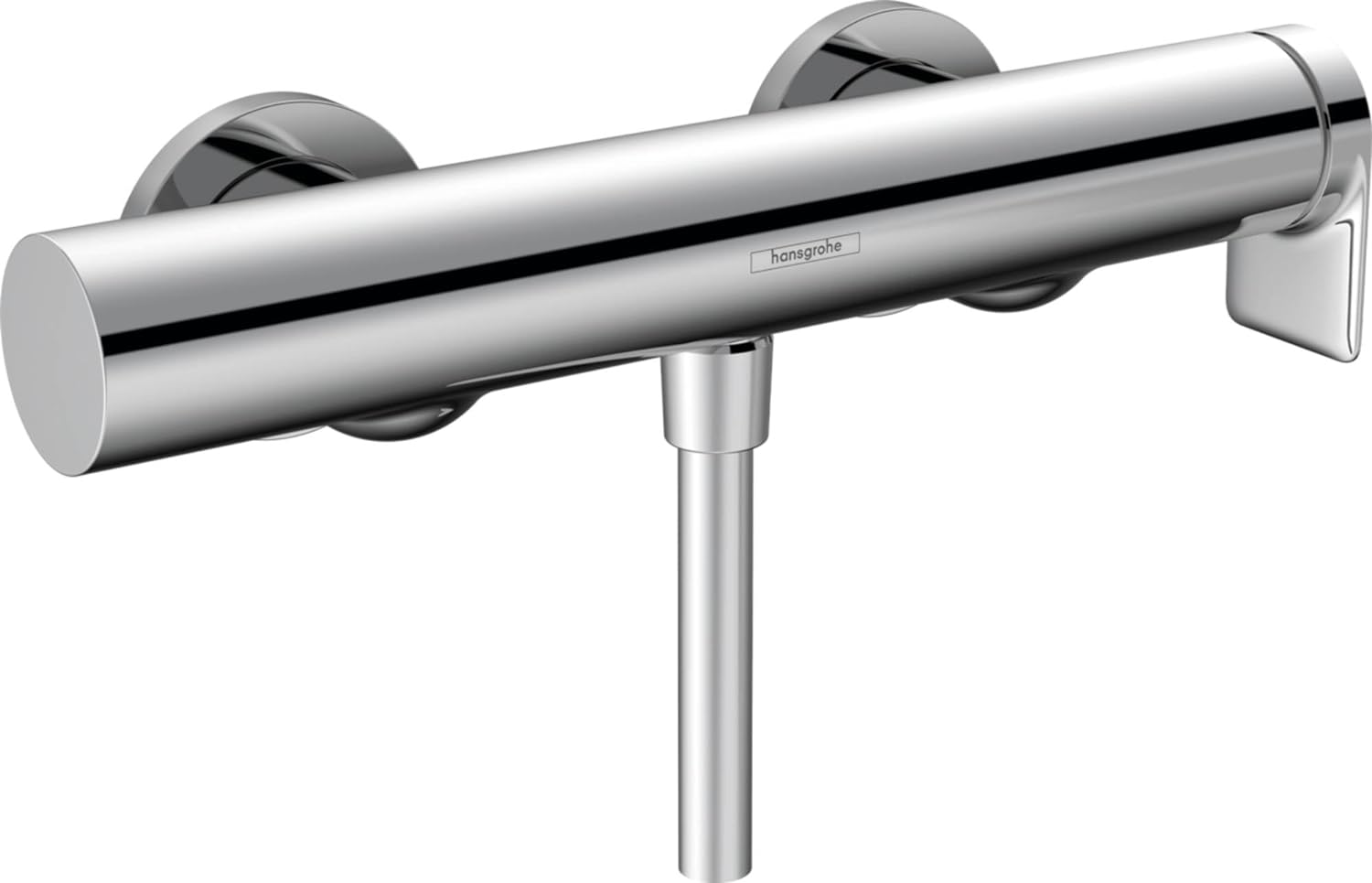

hansgrohe Vivenis Single lever shower mixer (Chrome)
Made in Germany ??
1 function

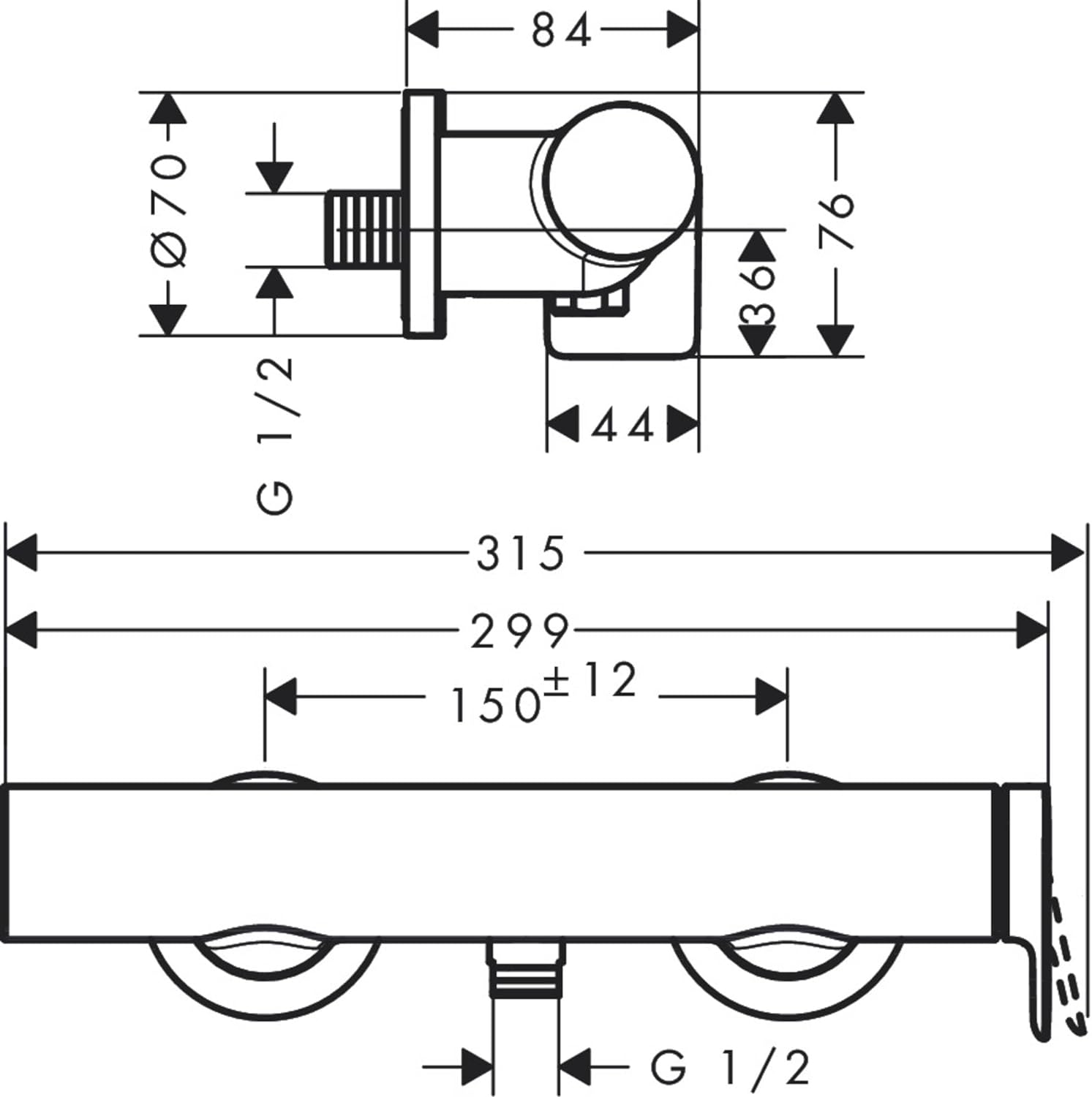

centre distance: 150 ± 12 mm
maximum flow rate at 3 bar: 12,3 l/min
ceramic cartridge
temperature limitation adjustable
non-return valve
with silencer
hose connection DN15
connection dimension: DN15
min. operating pressure: 1 bar
max. operating pressure: 10 bar
connection type: s-shaped connections
not suitable for exposed piping
shower hose sold separately
